Name: Stainless steel ball valve 715 2 piece body BSP 1/4''
SKU: 6150
Price: 7.9714285714286 EUR
Availability: InStock

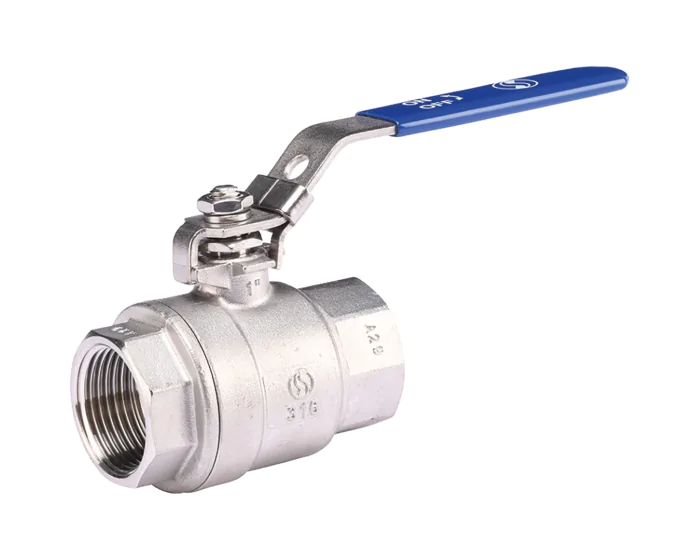

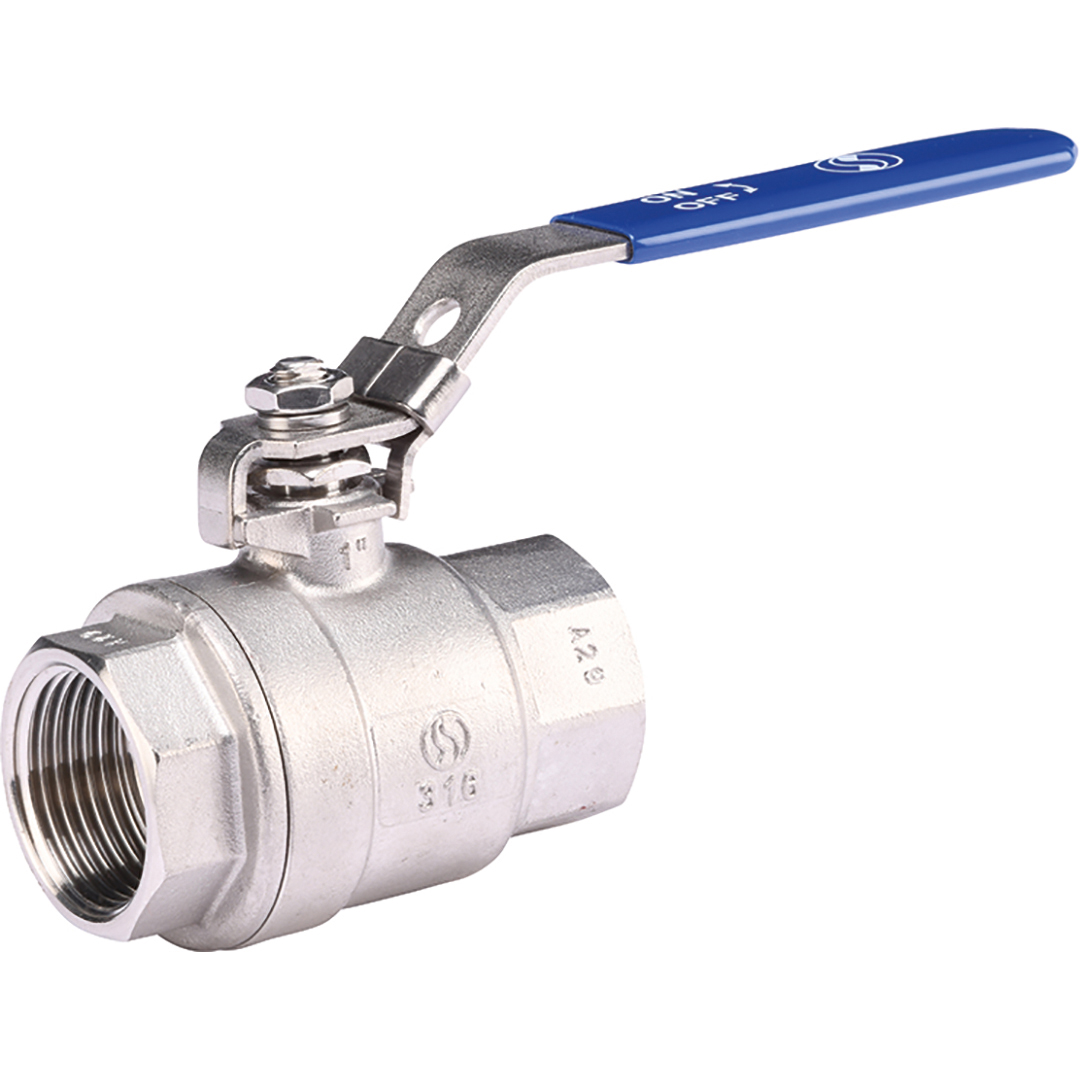

Stainless steel ball valve 715 2 piece body BSP 1/4''

Stainless steel ball valve 715 2 piece body BSP 1/4''

€7.97 (excl. btw)

The series 715 2-piece body ball valve is made of stainless steel, glass-filled PTFE seat, BSP female/female threaded ends and anti-blowout stem. It is suitable for petrochemical, compressed air, pharmaceutical and chemical industries.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Our reference 715 is a very common industrial valve. This two-piece body ball valve comes in sizes ranging from 1/4'' to 4''. With its body made of ASTM A351 CF8M stainless steel and its threaded female-female BSP connections, this two-piece body ball valve is suitable for use through a wide range of temperatures ( -20 °C to +180 °C ), and with a maximum allowable pressure of 63 bar . This robust and reliable plumbing item also shows a number of specific characteristics, such as: - Full bore - PTFE seat - Anti-blowout stem - Blue flat lever - PTFE gland packing - Locking device - Stainless-steel solid ball Our reference 715 is perfect for use with all compatible common fluids such as utilities, process fluids, and all general uses in industry . It is then widely employed in the chemical, petrochemical, and pharmaceutical sectors, in hydraulic installations, or even compressed air systems.

Specification	Value
DN inches NPS	1/4''
Option certificate 3.1	Yes
CE risk category	II Module D1
Thread standard	ISO 228-1
Tightness test standard	EN 12266-1 Rate A
Stem sealing material	PTFE gland packing
Opening device	Handle
Application	Industry
Shaft/stem matérial	Stainless steel AISI 316
Lockable	Yes
Torque (Nm)	4
DN	DN8 - 1/4''
Face to Face (mm)	535.0
Fluid	Acids
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Bore	Full
ISO pad 5211	No
Packing gland	Yes
PS (bar)	63
Connections	BSP FF
Seats	PTFE-Glass
Ball material	Stainless steel ASTM A351 CF8M
TS max (°C)	180
TS min (°C)	-20
Ball valve design	2-piece body
Warranty period	2 years
CE	Yes
Handle material	Stainless steel AISI 304
Handle type	Blue lever

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
6151	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/4''	715002	S1006389	€7.97 (excl. btw)	add to cart
6152	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/8''	715003	S1006390	€7.97 (excl. btw)	add to cart
6153	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2''	715004	S1006391	€8.69 (excl. btw)	add to cart
6154	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4''	715005	S1006392	€11.59 (excl. btw)	add to cart
6155	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''	715006	S1006393	€17.74 (excl. btw)	add to cart
6156	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/4	715007	S1006394	€26.06 (excl. btw)	add to cart
6157	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/2	715008	S1006395	€36.51 (excl. btw)	add to cart
6158	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2''	715009	S1006396	€62.16 (excl. btw)	add to cart
6159	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2''1/2	715010	S1006397	€118.86 (excl. btw)	add to cart
6160	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3''	715011	S1006398	€184.27 (excl. btw)	add to cart
6161	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 4''	715012	S1006399	€436.90 (excl. btw)	add to cart
